CASE - I.H. Clutches
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

DUAL PLATE CLUTCH

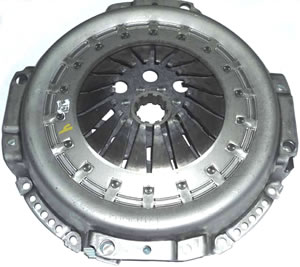

B6649 SINGLE PLATE CLUTCH
Application
Clutch Kit
Full kit includes clutch assy, plates and all bearings shown.
Clutch
Assembly
Main
Drive Plate
PTO Plate
Thrust Bearing
Pilot Bearing

11" DUAL PLATE CLUTCH

F70, F75, F80, F85, F90, F100
T70, T80, T90, T100,
V60, V65, V70, V80,
C75MAX, C80MAX, C85 MAX,

These models have option for 12" Clutch (B9286 kit below)
Confirm 11" or 12" plate dia

B9284
11" Organic Clutch
Your

B6735
= 3300000M99
Main Plate Incl.- NOT P.T.O.
Your
Organic
B6737
= 3311538M92
280 x 40mm 14 splines sprung hub
Your
B2864
=
1424135M91
280 x 25mm
10 Splines Organic
MAIN
B503
=
1423473M91

P.T.O.
B2878
1442381X1


B3640
=
339599X1
Choice

B9285
11" Ceramic Clutch
Choice

B6736
=3304585M94
Main Plate Incl.- NOT P.T.O.
Choice

Ceramic Pads
B6739
= 3311326M91

12" DUAL PLATE CLUTCH

Following Models when fitted with
12" clutch
F70, F75, F80, F85, F90, F100
T70, T80, T90, T100,
V60, V65, V70, V80,
C75MAX, C80MAX, C85 MAX,
B9286
12" Ceramic Clutch
B7507
=3532192M94
(12")
Main Plate Incl.- NOT P.T.O.
B7532
=3105232M92
310 x 40mm 14 splines
Ceramic Pads Spring Hub
B7533
=
3105233M91
310 x 25mm
10 splines
Organic

12" SINGLE PLATE CLUTCH

CX50, CX60, CX70
CX80, CX85, CX90, CX95, CX100, CX105
C50, C60, (C70 with single plate clutch), C80, C90, C100
B6660
B6649
=
223807A1
B6647
CERAMIC
= 330732A1
12'' x 1 1/8'' 10 spline
7 Pairs of Pads
Replaces 5 Pad Plate
NOT
FITTED
B6627
=
85104C91 85104C92
B3640
=
537290R91
