Clutches - Part 4
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

APPLICATION
Full CLUTCH KIT includes: Clutch Assembly Plates & all bearings shown.

CLUTCH KIT
Clutch Plate
Identify
Cover Assembly
Thrust Bear'g
Pilot Bearing
4100, 4600
(11" Clutch)|
3910, 4110, 4610
with 11" Clutch
(up to april 1983)
B9300
(Full kit)
B21
Replaces
D1NN7550A
E3NN7550AA
D1NN7550A
3937176 Disc plate

Replaces paddle type plate
11" x 1"
10 Spline
ORGANIC

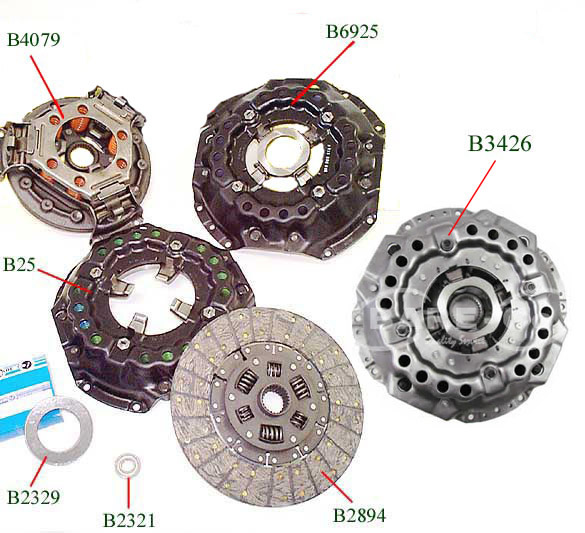

B4079
(Uprated)
Replaces
D8NN7563DB
E6NN7563BA
DONN7563A
C9NN5563D
C9NN7563E
1822440
1822077
3935271

With PTO hub
B2329
Replaces
D8NN7580AA
D8NN7580BB
D8NN7580CA
3933520
3946908
3917358
B2321
Replaces
C5NN7600A
1805417

13" Clutch
(from may 1983)
2610, 2810, 2910, 3230, 3430, 3930,
+ following models with 10 spline plate:
3400, 3500, 3550, 3600, 3610, 3910, 4100, 4110, 4130, 4330, 4340, 4400, 4410, 4450, 4500, 4600, 4610, 4630, 4830, 5030

B9304
(Full kit)
B7206
Replaces
FONN7550BA
E8NN7550MA
3982643
E3NN7550BA
3937180
13" x 1"
10 Spline
(Rigid Centre
can replace sprung hub option)

B3426
Replaces
C5NN7563AC
1815763
Following models with 15 spline plate:
3400, 3500, 3550, 3600, 3610, 3910, 4100, 4110, 4130, 4330, 4340, 4400, 4410, 4450, 4500, 4600, 4610, 4630, 4830, 5030
B9305
(Full kit)
B7207
13" x 1"
15 Spline
(Rigid Centre
can replace sprung hub option)
5000 10/69-5/1971
11" Clutch model only
B9306
(Full kit)
B5279
Replaces
C7NN7550AB
1820885
11" x 1 5/8"
25 Spline
B4079
Replaces
D8NN7563DB
E6NN7563BA
DONN7563A
C9NN5563D
C9NN7563E
1822440
1822077
3935271
B3641
Replaces
C5NNN779B
1816675
5000 65-9/69
then 6/1971 on
12" Clutch

5600, 6600, 6700
5610, 6610, 6710
7610, 7710
With 12" Clutch
B9307
(Full kit)
Less Dual Power
B2894
Replaces
E3NN7550EA
C7NN7550Z
1820829
12" x 1 5/8"
25 Spline
sprung centre
B25
Replaces
EONN7563CA
3925716
B9308
(Full kit)
With Dual Power
B5282
Replaces
E7NN7550DA
E3NN7550CA
3937183
12" x 1 3/4"
10 Spline
sprung centre
5000 65-9/69
13" Clutch
7000, 6600, 6700
7600, 7700, 5610
6610, 7710
B9309
(Full kit)
Less Dual Power
B5280
Replaces
E8NN7550KA
D9NN7550CA
3919288
13" x 1 5/8"
25 Spline
rigid centre
B6925
Replaces
D8NN7563AB
3927137
B9310
(Full kit)
With Dual Power
B5281
Replaces
D9NN7550AB
13" x 1 3/4"
10 Spline
sprung centre
4635, 4835
with 12" Single Clutch.
Upgrade to Ceramic Clutch as used on the following models
5635, 6635, 7635
with 12" Single Clutch.
B5566
=5189825
CERAMIC
310 x 45mm
(12" x 1 3/4")
16 Splines
Sprung Hub
Single Clutch.
12" x 1 3/4"
16 Splines
Sprung Hub
B5567
Replaces
5189823
N/A
B7179
Replaces
28996650
500311249
4230, 4430, 5530, 6530, 4460, 7530,
4635, 4835, 5635, 6635, 7635
with DUAL CLUTCH
            Refer to FIAT / HESTON, NEW HOLLAND
