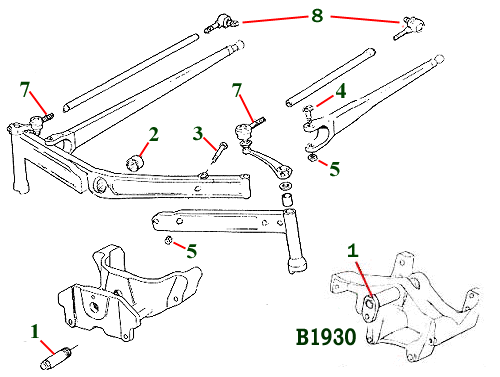

Radius Rod Front Axle
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
RADIUS ROD FRONT AXLE MODELS
MANUAL STEERING
Ref
Part No.
Replaces
Description
Application
1
B1930
2N3126D
 Pivot Pin 9N, 2N, 8N
B3866
C5NN3127B
1812461
Pivot Pin 1 3/4" dia
2000, 3000 up to 7/1970
B3867
C7NN3127D
1822711
Pivot Pin 2" dia
2000, 3000 from 8/1970
2600, 3600, 4100, 2610
3610, 3910, 4110
2
B934
2N3039
 Pivot Bush 1 15/16" OD x 1 3/4" ID 9N, 2N, 8N, NAA, 600, 800, (2000, 4000 4 cyl)
B3870
C5NN3153C
Pivot Bush 1 3/4" ID
2000, 3000 up to 7/1970
B3871
C7NN3153B
1822712
Pivot Bush 2" ID
2000, 3000 from 8/1970
2600, 3600, 4100, 2610
3610, 3910, 4110
3
B2153

Axle Beam Bolt
9N, 2N, 8N, NAA, 600, 800
Dexta, Super Dexta
2000, 3000, 2600, 3600
4100, 2610, 3610, 3910, 4110
4
B2152
957E3415A
Radius Rod Bolt
5
B2154
379223S43
Nut
6
B3302
C5NN3N303A|
1802878
Universal Tie Rod End Boot
7
B1850
9N3270
 Front Ball Joint - RH thread 9N, 2N
B2794
8N3270
957E3290B
1802867
NAA3270A
Front Ball Joint - LH thread
8N, NAA, 600, 800, Dexta, Super Dexta
2000, 3000, 2600, 3600
4100, 2610, 3610, 3910, 4110
8
B2795
957E3307B
1717427
NAA3327A
Rear Ball Joint 2 Req.
9N, 2N, 8N, NAA, 600, 800
Dexta, Super Dexta
2000, 3000, 2600, 3600
4100, 2610, 3610, 3910, 4110
