Mufflers (NON Spark Arresting)
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

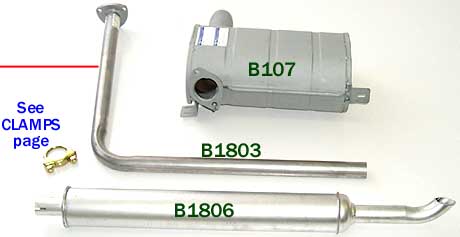

For B1806 :
Inlet ID = 1 1/2"
Inlet OD = 1 5/8"
See Massey Section

TRACTOR MODEL
MUFFLER PIPE SIZE
PART No.
DESCRIPTION

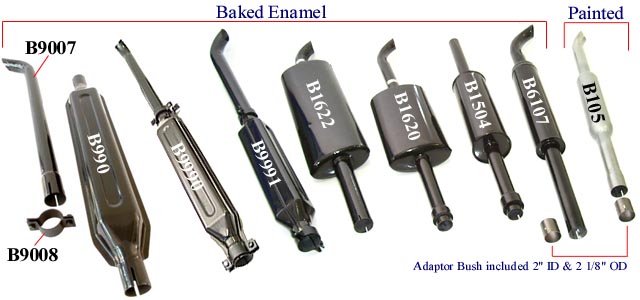

CASE-DAVID BROWN 770, 780, 880, 885, 990, 995, 1200, 1210, 1212, 1190, 1290

2" outside
with Shroud
B1504

Baked Enamel ROUND BODY

FIAT / HESTON 450, 480, 500, 540, 550, 600, 640, 650
with special (FABRICATED) Elbow (interchangeable with below)

2" / 2 1/8" I.D.
(interchangeable with below)
B6107

Baked Enamel - 4 3/8" dia. BODY

With original (CAST) Elbow
450, 480, 500, 540, 550, 600, 640, 650, 466, 566, 666, 766, 45-66, 55-66, 60-66, 65-66, 70-66, 80-66, 80-90

(1 13/16" I.D.)

 B990

SILENCER ONLY - Baked Enamel Original Type
B9007
 Extension pipe to fit above.
B9008 Clamp (Special) to fit Silencer above.
B9991 Complete assembly with Extension Pipe - Baked Enamel

880, 980, 90-90, 100-90, 110-90, 1300

60mm I.D.
B9990

Complete with extension pipe ORIGINAL TYPE - Baked Enamel

FORD. DEXTA - SUPER DEXTA

2" INSIDE
B105

3 1/2" dia. long - Painted
B6107

4 3/8" dia. long - Baked Enamel

FORDSON MAJOR

2" OUTSIDE Suplied with shroud
(Cut if shroud not req.)
B1504

Baked Enamel
5 1/2" ROUND BODY

FORD 2000, 3000, 4000, 2600, 3600, 4100, 4600, 2310, 2610, 2810, 2910, 3610, 3910, 4110, 4610
B1620

Baked Enamel
15 3/4" long OVAL BODY

FORD 5000, 5600, 5700, 6600
B1621

Baked Enamel 26" long OVAL BODY

FORD 7000, 7600, 7700, 7710

2 3/8" INSIDE
B1622

IHC B250, B275, 414, 374, 384, 444

UNIVERSAL INLET 1 7/8" - 2" - 2 1/8"
B105

3 1/2" dia. body (PAINTED)

454, 484, 485, 474, 574, 674, 584, 684, 585, 685, 785, 885, 495, 595, 695, 795, 895

2 3/8" INSIDE
B1622

Large Capacity Baked Enamel
26" long OVAL BODY

866, 886, 666, 686, 696, 756, 766, 786, 976, 986

2 7/8" I.D.
N/A



JD 840, 940, 1040, 1140
(early 1350, 1550, 1750, 1850 with 2 bolt flange)

Replaces AL31552
B106

UNDER HOOD MUFFLER

1640, 1840, 2040, 2040S, 2450

Replaces AL35753
B107

2140, 2650, 2850

Replaces AL35753
B108

1020, 1120, 830, 930, 1030, 1130, 1630
840, 940, 1040, 1140, 1350, 1550, 1750, 1850

2 1/2" I.D.
B1097

VERTICAL OVAL MUFFLER Baked Enamel, Inlet Length = 3"

2020, 2120, 1830, 2030, 2130
B1098

VERTICAL OVAL MUFFLER Baked Enamel, Inlet Length = 6 1/2"

KUBOTA M7500DT

2" I.D. or 2 1/8" I.D. (adaptor bush supplied)
B105

(3 1/2" Body) Baked Enamel - Fits All Models (as above)

MASSEY FERGUSON - See Massey Section

NEW HOLLAND
3435, 3830, 3935, 4030, 4135, 4230, 4430
46mm (1.8") ID
B9991

Complete assembly (Baked Enamel)
B990
=5157240 		Muffler ONLY
B9007
=44905154 		Extension Pipe
B9008
=5116793

Clamp

SAME - ALL MODELS
2" I.D. or 2 1/8" I.D. (adaptor bush supplied)
B6107

(4 3/8" Body) Baked Enamel - Fits All Models (as above)

UNIVERSAL FARMLINER ALL MODELS
SEE FIAT / HESTON (above)
