Hyd. Levelling Boxes (Tilt Cylinders)
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
Hydraulic Levelling Boxes (Tilt Cylinders)


Application
Model
Part No.
Daedong
CK20, CK25, CK30
B8131
Ford
 2000, 3000, 2600, 3600, 2310, 2610
B8132
Iseki
1533
B8132
1528
B8128
Kioti
 CK20, CK25, CK30
B8131
Kubota
 L2250, L2350, L2500, L2550, L2600, L2650, L2800, L2850, L3000, L3130, L3400, L3430, L4400, L5030,
Grand L Series
B8131
M4030,
M4700, M4800, M4900, M5400, M5700, M6800,
M8540, M9000, M105S
B8132
B2410, B3030, B7400, B7410, B7500, B7510, B7610, B7800
B8133
Massey Ferguson
TO35, MF35, MF135, MF150, MF165STD, MF230, MF240, MF245, MF250, 1533
B8132
1528
B8128
New Holland
TC35A, TC29DA, TC40DA, TC30, TC55DA
B8132
B9409
Flow Control Valve
1/2" NPTF Ports

Hydraulic Levelling Boxes (Tilt Cylinders)

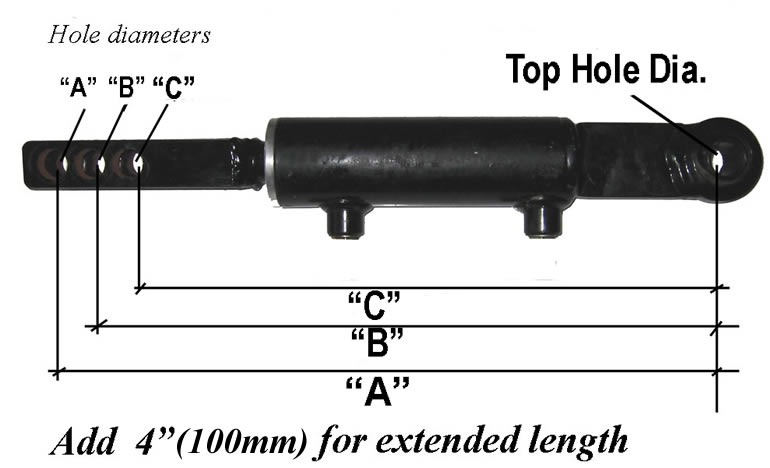

DIMENSIONS

Tilt Cylinder ASSEMBLY
Fork
Replacement
Seal Kit
Cylinder Body Less Fork
Cylinder Body
Length
"A"
"B"
"C"
Fork Inside Width
B8128
B8125
B8441
B8117
7/8" top hole diameter.
305 mm (12")
Top hole to
end of shaft
18 1/2" (470mm)
Hole Dia.
16mm (5/8")
16" (406 mm)
Hole Dia.
14.3mm (9/16")
15" (380mm)
Hole Dia.
16mm (5/8")
7/8"
(22mm)
B8131
B8125
B8123
3/4" top hole diameter.
305 mm (12")
Top hole to
end of shaft
18 1/2" (470mm)
Hole Dia.
16mm (5/8")
16" (406 mm)
Hole Dia.
14.3mm (9/16")
15" (380mm)
Hole Dia.
16mm (5/8")
B8132
B8126
B8124
7/8" top hole diameter
and 5/8" with included
bush.
325 mm (12.8")
Top hole to
end of shaft
22" (559 mm)
Hole Dia.
16mm (5/8")
19" (483mm)
Hole Dia.
16mm (5/8")
2 holes only
B8133
B8127
B8129
16.7mm Dia. Top hole
Angled clevis ends.
300 mm (12")
Top hole to
end of shaft
16 1/2" (420mm)
Hole Dia.
12.7mm (1/2")
One hole only
One hole only
B8136
B8145
B8435
B8144
7/8" top hole diameter
and 5/8" with included
bush.
369 mm (14.5")
Top hole to
end of shaft
22" (559 mm)
Hole Dia.
19mm 3/4")
20.5" (521mm)
Hole Dia.
19mm 3/4")
2 holes only
1/1/4"
(32mm)
