MF Hydraulic Lift Cover
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

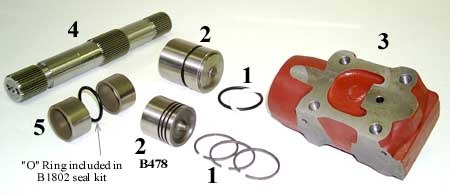

Application
1
Piston Rings
2
Piston
3
Ram Cylinder
4
Cross Shaft
5
Cross Shaft Bushes

TO20, TO30, Te20
B5214
1 set = 3 off
180898M1
B478
=181983M1
(2 1/2" dia)
B1629
=201183
829382M1
N/A
N/A

TO35 up to ser. no. 179304
MF50, MH50, F40
Not Available
To upgrade, order
B480 x 3
B1632 and B1630
B491
=
184359M2
Ends are
37 Spline
B2371
(4 req.)
= 181018M1

TO35 from ser. no. 179305
MF35, 50, 65
Early model MF135, 150, 165
with 3" dia piston
B480
(3 req.)
=830741M91
184447M1
B1632
=184443M91
(3" dia)
B1630
=190859M1
This is an Upgrade
Cylinder with
9/16" bolt holes.
For early tractors with
1/2" bolts,
drill top cover to 9/16".
Also Requires:
2 bolts 9/16" x 2 1/2" UNF
& 2 bolts 9/16" x 3" UNF

Late model MF135, 150, 165 with
3 1/8" dia piston
MF230, 235, 240, 245, 250, 282
Early (Metal)
B7590
=897564M1
(3 req.)
B479
"O" ring type
(3 1/8" dia)
=
1665737M91
[replaces early type]
B473
=
897560M3
B474
=
897567M3

Ends are
51 Spline
B475
(2 req.)
= 1870934M1
Late (1 req.)
B7581
"O" ring
B7582
Teflon Seal

MF175, 180, 255, 265, 270, 275,
283, 290, 298, 698, 699
Early (metal)
B7591
(3 req.)
B477
"O" ring type
(3 3/8" dia)
=
1665738M91
B476
=
1671082M1
Late (1 req.)
B7583
"O" ring
B7584
Teflon Seal
