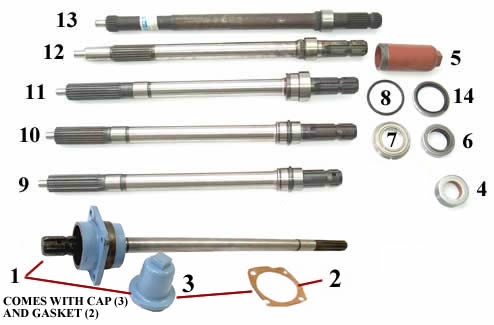

MF Power Take Off
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

Ref
Part No.
Replaces
Description
Application
1
B280
181169-38

1 3/8" Conversion Shaft Assembly
Includes Cap and Gasket

TO20, TO30, Te20
2
B1842
1075

Gasket
3
B2372
825787M1
310088
1105

Cap
4
B1828
195763M1
1190

Seal 1 1/2" I.D.
2 7/16" O.D. 7/8" width

Original TO20, TO30, Te20 shaft + some conversion shafts
B5205



Seal 1 3/16" I.D.
2 7/16" O.D. 9/32" width

Very early B280 1 3/8" Te20 conversion shaft
B1229



Seal 1 21/32" I.D.
2 7/16" O.D. 13/32" width

Late B280 1 3/8" Te20 conversion shaft
5
B2373
1868778M1

Cap

TO35, MF35, 50, 65, 175
MF135 up to 439191
MF165 new ser. no. series up to 130773
6
B1829
1860325M1

Seal
7
B2394
195498M1

Bearing
8
B2808
195522M1

"O" Ring
9
B277
181204M92

P.T.O. Shaft
10
B5206
1868557M93

P.T.O. Shaft

MF135 after 439191 up to 457632
MF165 after 130773 up to 144682
11
B5207
1660288M91

All models above after above ser. no. plus
MF240, 250

P.T.O. Shaft
(single speed only)

Following models with single speed P.T.O. only
MF265, 275, 285, 290
12
B9056
532899M1

540rpm P.T.O. Shaft

Following models with two speed P.T.O.
MF265, 275, 285, 290, 690
13
B9057
532897M1
1000rpm P.T.O. Shaft
14
B5308
834216M1

Seal

All applications after B1829 seal (Ref 6)
