H/D FEMALE /FEMALE CUSHION COUPLING
HEAVY DUTY BARE-Co PATENT FEMALE / FEMALE CUSHION COUPLINGS

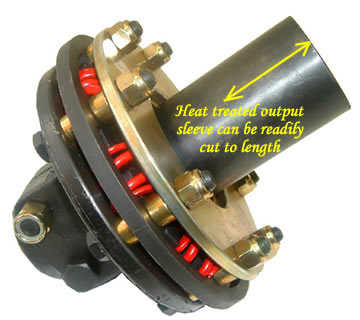

B6501      Anti - Clockwise Rotation

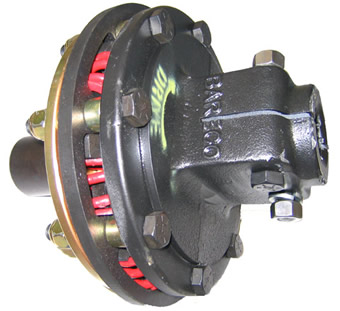

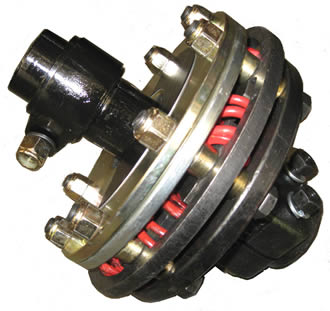

B6504     Clockwise Rotation (2 views)
  • Patented Heavy Duty Cushion Coupling providing limited predetermined rotational travel whilst carrying a MASSIVE 5000 NM (3688 ft/lbs) of Torque.
  • Danish Super Valve Spring Quality drive springs combined with 1 piece heat treated Drive and Driven Plates provide ultimate reliability.
  • Designed for LARGE Multihead Cutters with Timed Blades which preclude the use of safety slip clutches.
  • Without the Bare-Co® Heavy Duty Cushion Coupling, these machines can suffer outer gearbox coupling & shaft failures due to the flywheel effect of associated cutter disks being combined with tractor PTO torque.
1 3/8" x 6 Spline Couplings
PART No.
Diameter
Overall Length
Dimension
Rotation
Description
"A"
"B"
B6505
8" dia (200mm)
6 3/4" (171mm)
to...
9 3/4" (248mm)
[can be cut to length
by the user]
8.46" (215mm)
5.5"
(140mm)
Anti-Clockwise
1 3/8" x 6 spline female - female
B6504
Clockwise
1 3/8" x 6 spline female - female
1 3/4" x 20 Spline Couplings
B6501
8" dia (200mm
6 3/4" (171mm)
to...
9 3/4" (248mm)
[can be cut to length
by the user]
8.46" (215mm)
5.5"
(140mm)
Anti-Clockwise
1 3/4" x 20 splines female - female
B6500
Clockwise
 1 3/4" x 20 splines female - female
FEATURES
  • Replaces light duty rubber couplings
  • Radial springs absorb shocks with radial travel limited to 1/2 " (12mm) to suit timed shaft applications (Rotary cutters with overlapping timed blades)
COUPLING - SPARE PARTS

REF. No.
PART No.
DESCRIPTION
1
B3728
 Cotter Bolt - Fits 1 3/4" x 20 Spline couplings with Single Cotter Bolt.
2
B6521
 Base 1 3/8" x 6 Spline
B6522
 Base 1 3/4" x 20 Spline
2A
B6529
 Freewheel Base 1 3/8" x 6 Spline Anticlockwise
B6530
 Freewheel Base 1 3/8" x 6 Spline Clockwise
3
B6523
 Spacing Collar
4
B6524
 Outer Spider Plate
5

B3727

B3730

Drive Spring RED- 8 Required

Drive Spring GREEN- 8 Required
6
B6525
 Inner Spider 1 3/8" x 6 Spline Female - Clockwise
B6538
 Inner Spider 1 3/8" x 6 Spline Female - Anticlockwise
B6526
 Inner Spider 1 3/4" x 20 Spline Female - Clockwise
B6539
 Inner Spider 1 3/4" x 20 Spline Female - Anticlockwise
7
B503
 Bearing - fits 1 3/8" x 6 Spline Spider
B2881
 Bearing - fits 1 3/4" x 20 Spline Spider
8
B6534
 Bearing Housing - fits 1 3/8" x 6 Spline Spider
B6535
 Bearing Housing - fits 1 3/4" x 20 Spline Spider
