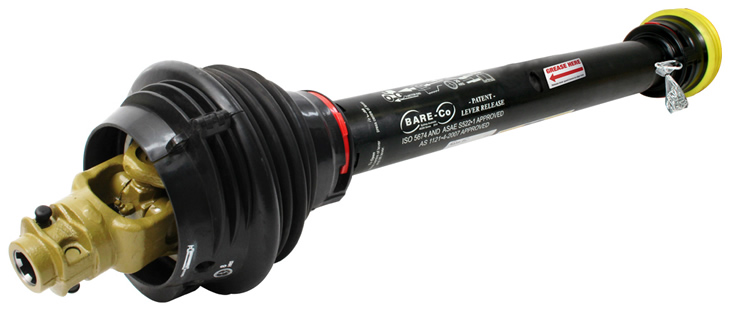

WIDE ANGLE (C.V.) SHAFTS
                  WARNING ! See Below...
WIDE ANGLE (C.V.) SHAFTS

PATENT LEVER
RELEASE GUARD

ALLOWS INSTANT
ACCESS TO (up to 7)
GREASE POINTS

80°
WIDE ANGLE JOINT ON
INNER TUBE END
SPARE PARTS for WB Series: see page PTO 31 / for WW Series see page PTO 43
POWER RATING
SHAFT SERIES
SHAFT LENGTH
PART No.
SHAFT END CONNECTION
@
540 RPM
@
1000 RPM
CROSS
to inner
CROSS
OVERALL
TRACTOR END
(Wide/ Angle End)
IMPLEMENT END


35hp
26kw
56hp
42kw
WB4 SERIES
Triangle Drive Tube

Non wide angle end yoke
= standard BARE-Co 4 series
Closed
43"
110cm

Open
69"
190cm
Closed
55"
140cm

Open
78"
200cm
WB4105
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
Closed
61"
155cm

Open
100"
255cm
Closed
72"
182cm

Open
112"
275cm
WB4150
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
Closed
43"
110cm

Open
69"
190cm
Closed
55"
140cm

Open
78"
200cm
WE4105
1 3/8" x 6 splines quick release

No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
64hp
48kw
100hp
77kw
WB6 SERIES
Triangle Drive Tube

Non wide angle end yoke
= standard BARE-Co 6 series
Closed
45"
115cm

Open
71"
180cm
Closed
55"
140cm

Open
80"
200cm
WB6105
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
Closed
63"
160cm

Open
102"
260cm
Closed
75"
190cm

Open
114"
290cm
WB6150
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
Closed
63"
160cm

Open
102"
260cm
Closed
75"
190cm

Open
114"
275cm
WE6150
1 3/8" x 6 splines quick release No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
WE615021
1 3/8" x 21 splines quick release No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
Closed
45"
115cm

Open
71"
180cm
Closed
55"
140cm

Open
80"
200cm
WE6105
1 3/8" x 6 splines quick release No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
Closed
63"
160cm

Open
102"
260cm
Closed
81"
206cm

Open
120"
306cm
WWB6150
Wide Angle Joint BOTH ENDS
1 3/8" x 6 Splines Quick Release
1 3/8" x 6 Splines Quick Release
Closed
75"
190cm

Open
114"
290cm
WC6150
Wide Angle with Clutch on Plain End
1 3/8" x 6 splines quick release
8" 200mm clutch 1 3/8" x 6 splines
WC615021
 Wide Angle with Clutch on Plain End
1 3/8" x 6 splines quick release
8" 200mm clutch 1 3/8" x 21 splines
WC6150216
 Wide Angle with Clutch on Plain End
1 3/8" x 21 splines quick release
8" 200mm clutch 1 3/8" x 6 splines
WC61502121
 Wide Angle with Clutch on Plain End
1 3/8" x 21 splines quick release
8" 200mm clutch 1 3/8" x 21 splines
WS6150
Wide Angle with Shear Bolt Yoke Plain End.
1 3/8" x 6 splines quick release
Shear bolt yoke
1 3/8" x 6 splines
WS6150621
Wide Angle with Shear Bolt Yoke Plain End.
1 3/8" x 6 splines quick release
Shear bolt yoke
1 3/8" x 21 splines
53hp
39kw
83hp
61kw
W2480 SERIES
Star Profile
Drive Tube

Non wide angle end yoke
=
Standard W2400 series
Closed
63"
160cm

Open
102"
260cm
Closed
70"
175cm

Open
109"
275cm
WE35150
1 3/8" x 6 splines quick release
No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
100hp
75kw
160hp
120kw
WB8 SERIES
Triangle Drive Tube


Non wide angle end yoke
= standard BARE-Co 8 series
Closed
45"
115cm

Open
71"
180cm
Closed
60"
152cm

Open
85"
217cm
WB8105
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
Closed
63"
160cm

Open
102"
260cm
Closed
77"
197cm

Open
116"
297cm
WB8150
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
WB815020
1 3/4" x 20 splines quick release
1 3/4" x 20 splines quick release
Closed
45"
115cm

Open
71"
180cm
Closed
60"
152cm

Open
85"
217cm
WE8105
1 3/8" x 6 splines quick release
No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
Closed
63"
160cm

Open
102"
260cm
Closed
77"
197cm

Open
116"
297cm
WE8150
1 3/8" x 6 splines quick release
No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
WE815021
1 3/8" x 21 splines quick release
No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
WE815020
1 3/4" x 20 splines quick release
No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
WC8150
1 3/8" x 6 splines quick release
8" 200mm clutch 1 3/8" x 6 splines
106hp
79kw
170hp
126kw
Heavy Duty Version
Star Profile Drive Tube
W2580 SERIES


Non wide angle end yoke
= standard BARE-Co/ WALTERSCHEID 2500 series

Closed
63"
160cm

Open
102"
260cm
Closed
81"
208cm

Open
121"
308cm
WWW36150
This Shaft - Wide Angle Joint BOTH ENDS
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
Closed
45"
115cm

Open
71"
180cm
Closed
60"
152cm

Open
85"
217cm
WW36105
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
Closed
63"
160cm

Open
102"
260cm
Closed
77"
197cm

Open
116"
297cm
WW36150
1 3/8" x 6 splines quick release
1 3/8" x 6 splines quick release
Closed
45"
115cm

Open
71"
180cm
Closed
60"
152cm

Open
85"
217cm
WW3610521
1 3/8" x 21 splines quick release
1 3/8" x 21 splines clamp yoke
WW3610520
1 3/4" x 20 splines quick release
1 3/4" x 20 splines clamp yoke
Closed
51"
129cm

Open
68"
172cm
Closed
66"
167cm

Open
83"
210cm
W3613020
1 3/4" x 20 splines quick release
1 3/4" x 20 splines clamp yoke
Closed
63"
160cm

Open
102"
260cm
Closed
77"
197cm

Open
116"
297cm
WW3615020
1 3/4" x 20 splines quick release
1 3/4" x 20 splines clamp yoke
W36150206
1 3/4" x 20 splines quick release
1 3/4" x 6 splines clamp yoke
Closed
45"
115cm

Open
71"
180cm
Closed
60"
152cm

Open
85"
217cm
W361052120
1 3/8" x 21 splines quick release
1 3/4" x 20 splines clamp yoke
Closed
51"
129cm

Open
68"
172cm
Closed
66"
167cm

Open
83"
210cm
W361302120
1 3/8" x 21 splines quick release
1 3/4" x 20 splines clamp yoke
Closed
63"
160cm

Open
102"
260cm
Closed
77"
197cm

Open
116"
297cm
W361502120
1 3/8" x 21 splines quick release
1 3/4" x 20 splines clamp yoke
W36150216
1 3/8" x 21 splines quick release
1 3/4" x 6 splines clamp yoke
Closed
45"
115cm

Open
71"
180cm
Closed
60"
152cm

Open
85"
217cm
W361052021
1 3/4" x 20 splines quick release
1 3/8" x 21 splines clamp yoke
Closed
45"
115cm

Open
71"
180cm
Closed
60"
152cm

Open
85"
217cm
W36105620
1 3/8" x 6 splines quick release
1 3/4" x 20 splines clamp yoke
Closed
51"
129cm

Open
68"
172cm
Closed
66"
167cm

Open
83"
210cm
W36130620
1 3/8" x 6 splines quick release
1 3/4" x 20 splines clamp yoke
Closed
63"
160cm

Open
102"
260cm
Closed
77"
197cm

Open
116"
297cm
W36150620
1 3/8" x 6 splines quick release
1 3/4" x 20 splines clamp yoke
W361506
1 3/8" x 6 splines quick release
1 3/4" x 6 splines clamp yoke
WE36130
1 3/8" x 6 splines quick release
No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
WE3613020
1 3/4" x 20 splines quick release
No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
WE3613021
1 3/8" x 21 splines quick release
No end yoke on the plain end. Accepts standard yoke. Click for
end yoke page
WARNING !


80 degree Short Term Operation and Stationary
25 degree Continuous Operation
Exceeding 80 degree angle will result in joint ball / socket FAILURE !
(NOT COVERED BY WARRANTY)
Tractor turning limiter should be fitted to the implement drawbar
